Barrel Lifter with Extended Reach

This counterbalance barrel lifter with extended reach allows operators to lift drums in and out of storage cabinets and process machinery.

Overview

The Counterbalance Barrel Lifter is a popular product for use in narrow walkways and tight work spaces. The design of this unit means that it has no front facing legs which enables it to easily lift on and off platform shelves or into cabinets.

Upon request, we have adapted our stainless-steel ladder rack to provide operators with extra reach when lifting drums from cabinets. This extended ladder rack can be fitted to our Side Shift Barrel Lifter (DTP04) or our Counterbalance Barrel Lifter (DTP08) if needed.

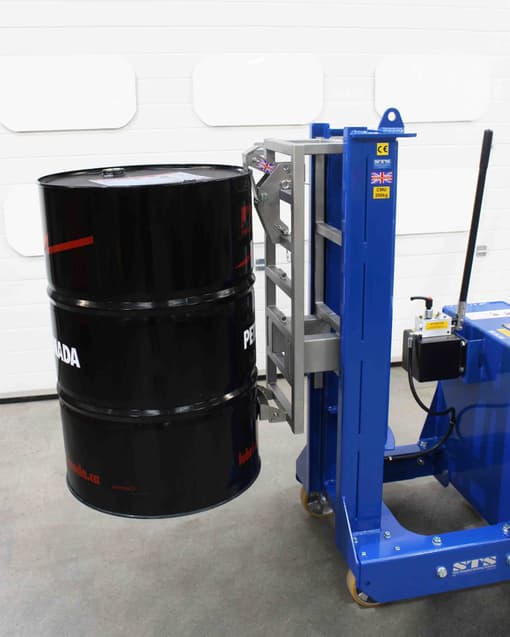

A image of a steel drum being lifted with a custom barrel lifter.
Counterbalance Barrel Lifter handling a 205 litre steel drum.
A close up image of the extended catch on the counterbalance barrel lifter.
Extended stainless-steel ladder rack (220mm forward reach).

Product design

Companies whose factories include bunds, cabinets or concrete plinths can experience difficultly lifting drums from these areas. We have designed this barrel lifter with an extended catch arrangement to accommodate extra forward reach. The extension provides 220mm of reach ahead of the unit to allow drums to be placed in the correct position.

The ladder rack is fabricated from from 304-grade stainless steel and is attached to the front of the lifter body. Operators simply approach their drum with the barrel lifter, the catch engages with the drum and they can then lift the drum to height using the manual hand pump. The universal drum catch can be adjusted quickly and easily to accommodate a variety of different drum types.

If a company requires a greater lift height for high platforms or custom containment bunds, we can adjust the height of the rack and lifter to allow for further clearance. All our barrel lifters can be adapted to suit a variety of different requirements. Get in touch to talk through your requirements and receive recommendations.

Close up of the extended catch design on the barrel lifter.
Universal drum catch on an extended ladder rack.

Drum Lifting Equipment

You can use our drum lifters for loading and unloading pallets and bunds as well as STS drum cradles, mixers and dollies. We have a range of drum lifting equipment for use in a variety of operations.

Contact Us

If you need a custom manual handling solution, we can design and manufacture the right piece of equipment to meet your specific requirements. Talk to us to find out how we can help you.
