Designed and manufactured in the UK, we construct all of our gas cylinder trolleys from corrosion-resistant stainless steel. Thousands of our trolleys are in use across the industry, and many are exposed to harsh environments. By using the finest stainless steel we ensure that our cylinder trolleys are durable, providing you with reliable and long-lasting equipment.
Key product features
Stainless-steel construction
Stainless-steel construction
Unique wheel arrangement
Unique wheel arrangement
Small wheels at the front of the unit allow you to tip the gas cylinder trolley upright; you can then move the baseplate under the cylinder before tilting the trolley back into position. The four main wheels offer exceptional manoeuvrability: the cylinder trolley can tackle small steps effortlessly.
Safety chain
Safety chain
To ensure the cylinder is secure and fastened into place, we’ve fitted the unit with a safety chain. While the gas trolley itself supports the cylinder and provides stability, the chain brings a second level of safety to the unit.

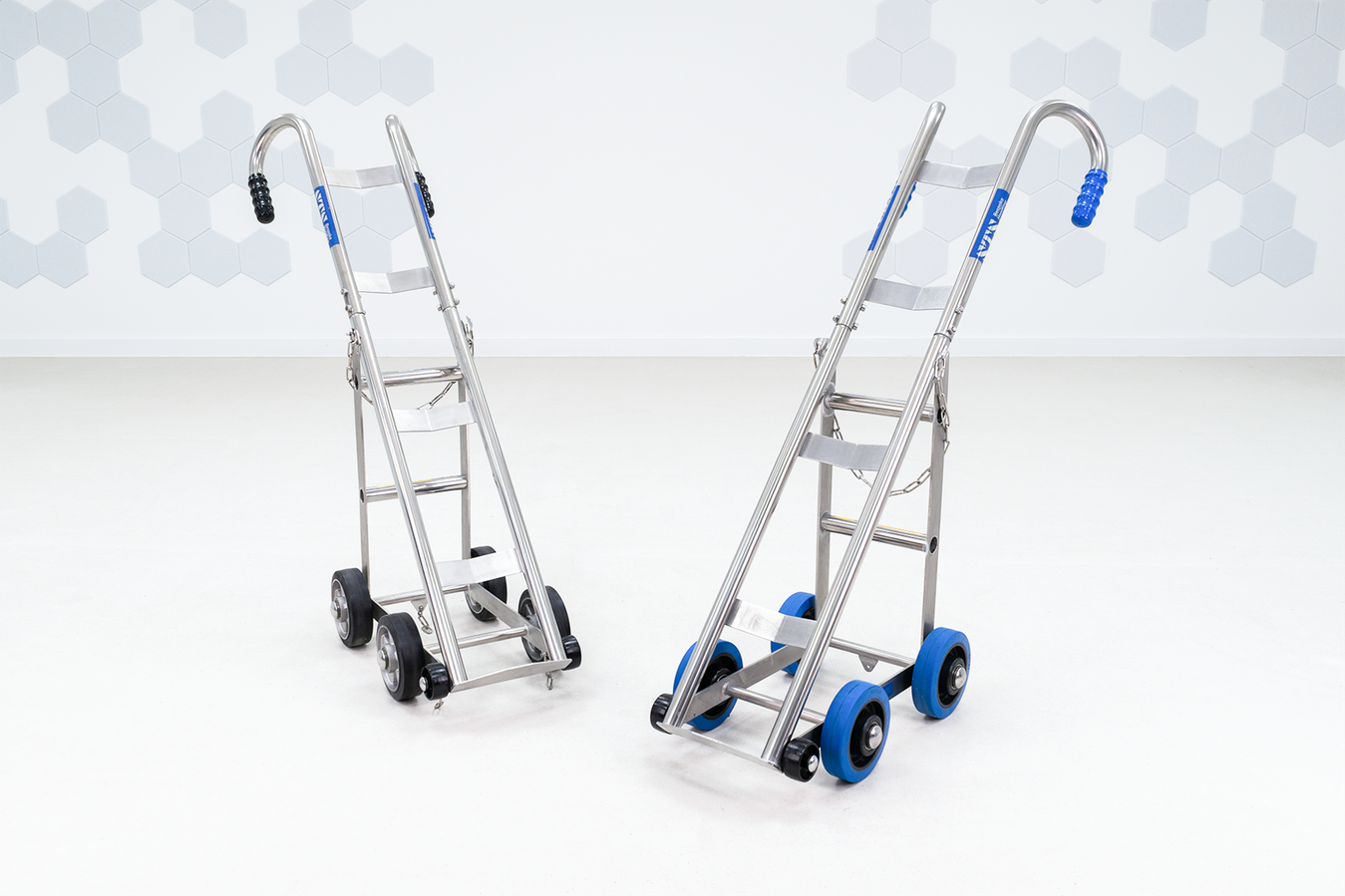

ATEX-certified model for gas and dust zones 1, 2, 21 and 22 (optional)
ATEX-certified model for gas and dust zones 1, 2, 21 and 22 (optional)
Cylinder trolleys used in an explosive or potentially explosive environment require ATEX certification. The CTS01-Ex is suitable for Zone 1, 2, 21 and 22 gas and dust classified spaces.
The gas cylinder trolley is manufactured to ensure electrical continuity, a path to ground is always present. Each of our Ex-rated models are supplied with a manufacturer’s EU Declaration of Conformity.
Specification

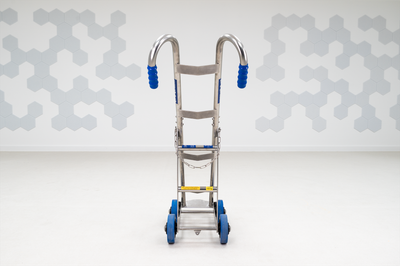

CTS01 Gas Cylinder Trolley
-
Rated capacity
150kg
-
Cylinder heights
Maximum cylinder height of 1600mm
-
Cylinder diameters
Cylinders diameters of 190mm to 250mm
-
Manual force required to operate
Less than 15kg
-
Wheel specification
Plastic-centred 160mm wheels with elastic rubber tyres and precision bearings
-
Front wheel specification
Small 65mm nylon front wheels for easy vertical cylinder loading
-
Negotiate steps and door sills
Yes
-
Compliance
EC Machinery Directive 2006/42/EC
CTS01-Ex ATEX Gas Cylinder Trolley
-
Rated capacity
150kg
-
Cylinder heights
Maximum cylinder height of 1600mm
-
Cylinder diameters
Cylinders diameters of 190mm to 250mm
-
Manual force required to operate
Less than 15kg
-
Wheel specification

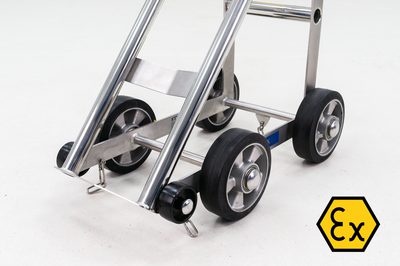

Aluminium-centred 160mm wheels with conductive elastic rubber tyres and precision bearings
-
Front wheel specification
Small 65mm nylon front wheels for easy vertical cylinder loading
-
Negotiate steps and door sills
Yes
-
Compliance
EC Machinery Directive 2006/42/EC
ATEX Directive 2014/34/EU
Zones 1, 2, 21 and 22 CE Ex II 2 G D
Optional features
ATEX option
We can build this cylinder trolley certified to ATEX Directive 2014/34/EU – suitable for use in potentially explosive ATEX Zone 1 environments.Sale or return
In the UK we can supply certain equipment on a sale-or-return basis, meaning you can use a unit on-site for seven days with no obligation to buy it once the trial period is up. Find out more here.
Technical specification
See the full technical specification for our Gas Cylinder Trolley for details such as weight, dimensions and load capacity.
Instruction manual
View the instruction manual for our Gas Cylinder Trolley, which details how to safely operate and maintain the unit.
